Water Baths


Water Bath
Water Bath

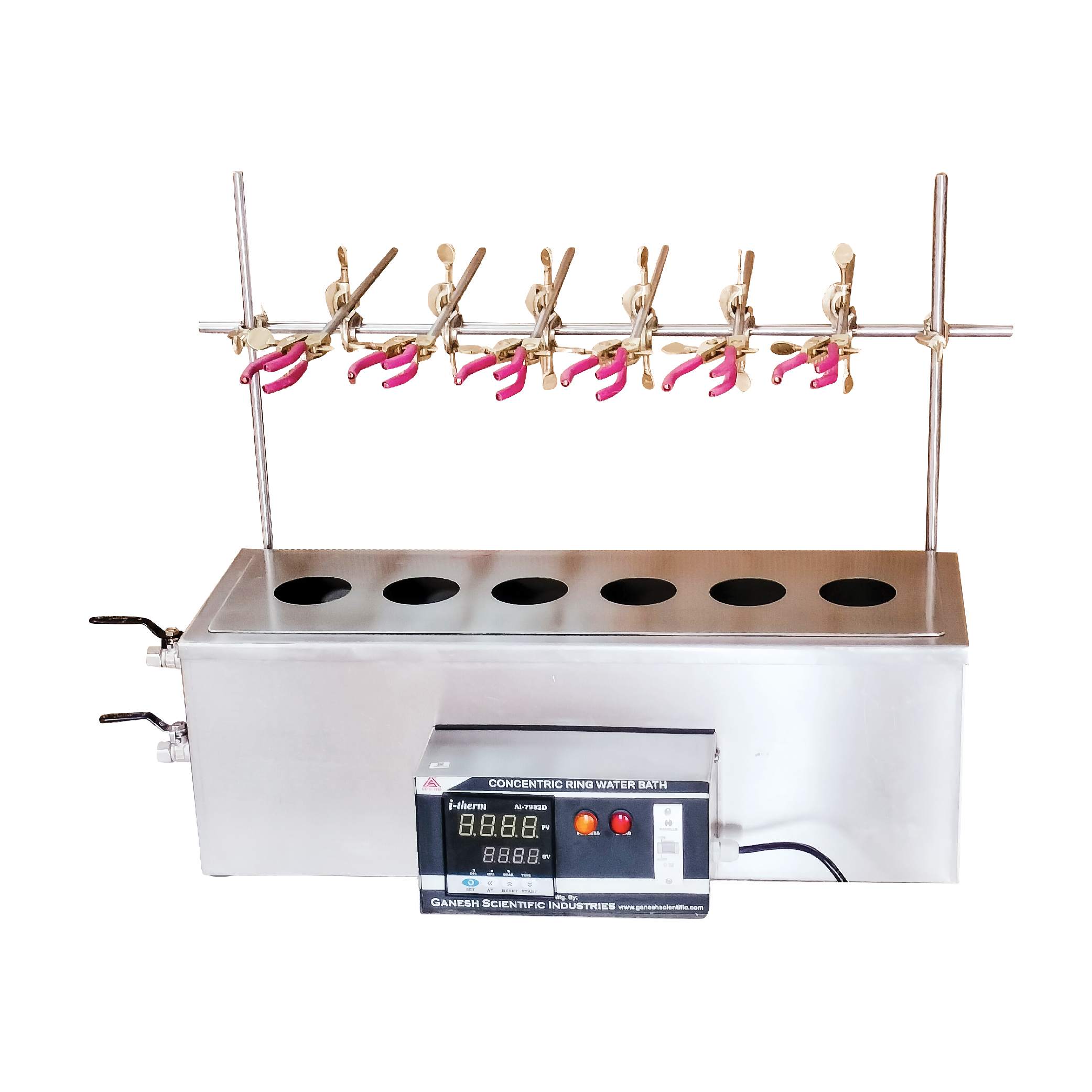

Customised Water Bath

Compact & light weight design, to fulfill boiling temperature requirements in R & D and Q.C. Labs, with fine accuracy.

Applications

General Chemical And Biological Uses, Bacterial Examination, Corrosion Testing, Serology Testing, Melting Samples, Warming Samples, Food Processing, Immunology Testing and others

Salient Features

  • Fully made of Stainless Steel with powder-coated paint finish and MAT Finish for GMP models
  • Advanced Digital PID type Temperature Controller
  • Temperature Range: Ambient +5°C to 99°C
  • Working Range: Ambient +5°C to 99°C
  • Heater: Electrically heated water immersion heaters as per IS Standard
  • Heat up time: up to 99°C within 30 Minutes
  • Accuracy: +/-10°C minimum
  • Resolution: 1°C
  • For safety: Settable over-shoot alarm and safety fuse
  • Insulated with high heat resistive cera wool insulation
  • Operating voltage: 230 volts AC, 50 Hz

Types Of water Baths

  • Suitable for R B (Round Bottom) flask (1,2,3)

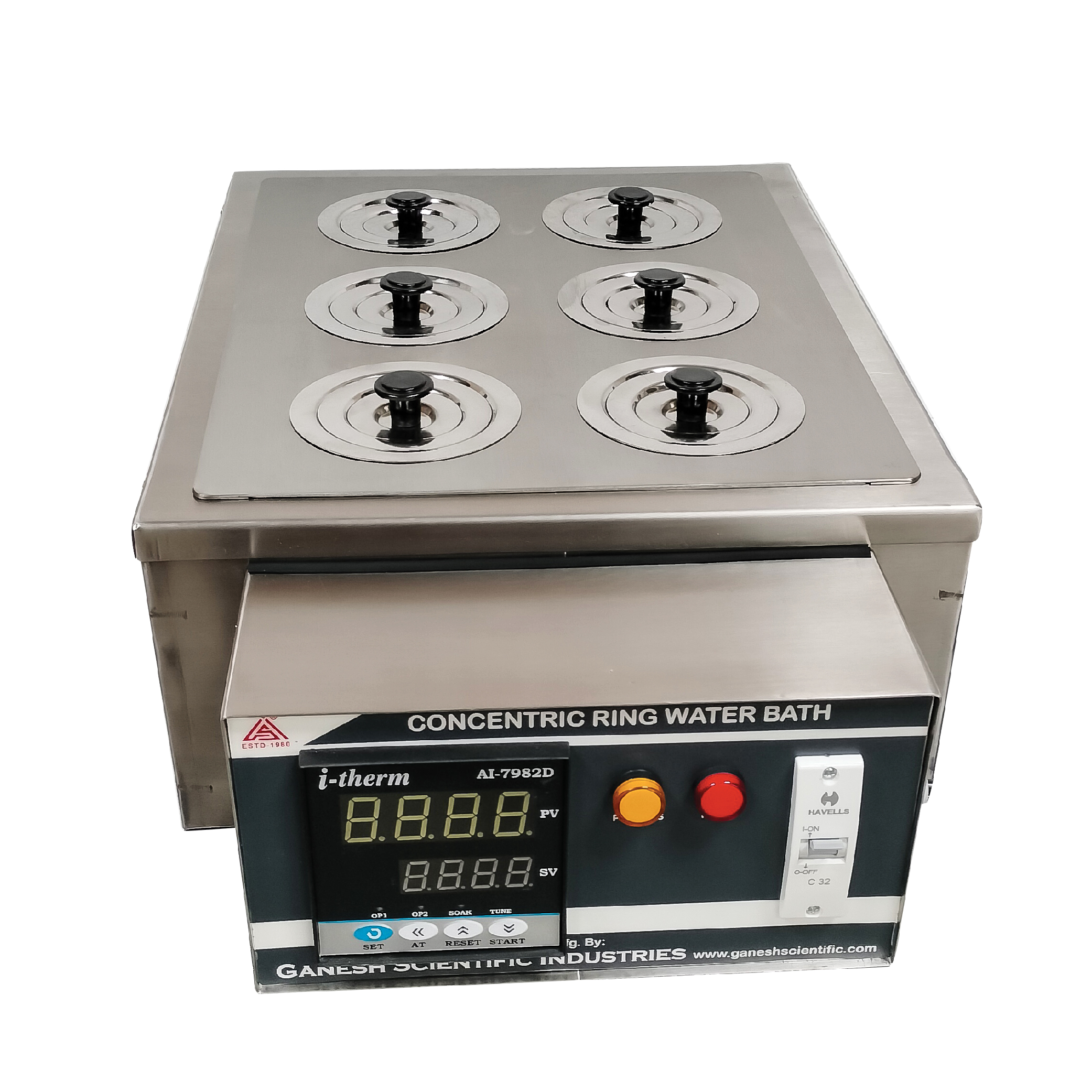

  • Concentric rings types water bath (4,5,6)
  • Constant temperature water bath
  • Universal water bath (7)

Standard sizes for round bottom flask water bath

Flask Capacity Rating (WATTS)
1 Liter1000 W
2 Liter1000 W
3 Liter1200 W
5 Liter1500 W
10 Liter2000 W
20 Liter 3000 W


Standard sizes for concentric rings water baths Icon

Working Size
Length x Width x Depth		 Number of Holes
(76 mm (3”) Diameter Hole)		 Rating (WATTS)
350 mm x 250 mm x 100 mm6 Holes 1000 W
460 mm x 360 mm x 100 mm12 Holes 1500 W
